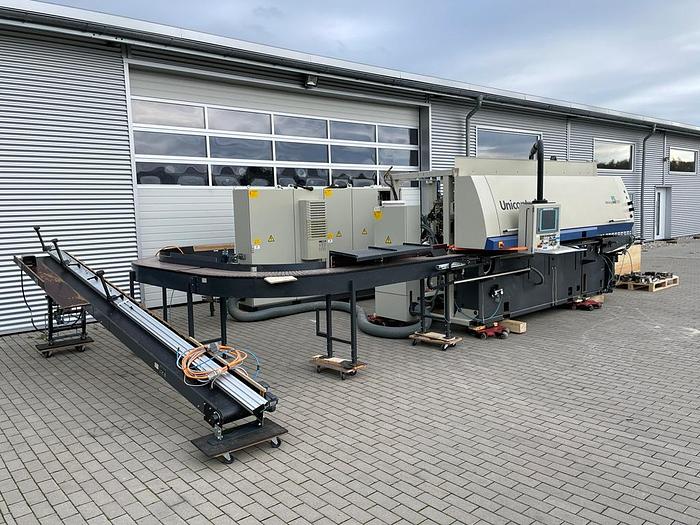

window production plant Weinig Unicontrol 10

window production plant Weinig Unicontrol 10

Contact us for price

Tauberbischofsheim, Germany

orCall + 49 (0)9341 1776

Description

Angular system Weinig Unicontrol 10 (UC 10) for the production of windows, elements and doors. Frame by frame, in series or individual part production with 2 tapping and slotted spindles incl. Oertli tool set * Aggregates: 1. Crosscut saw, NC axis, 3 kW, ø 40 mm, 2,800 rpm 2. First tapping and slotting spindle, NC axis, ø 50 mm, 15 kW, Clamping length: 640 mm (8 x 80) mm 3. Second tapping and slotting spindle, NC axis, ø 50 mm, 11 kW, clamping length: 400 mm 4. Profiling spindle 1, NC axis, ø 50 mm, 11 kW, clamping length: 4 x 80 mm 5. Profiling unit, horizontal from above, 3 kW 6. Profiling spindle 2, NC axis, ø 50 mm, 11 kW, clamping length: 4 x 80 mm 7. Profiling spindle 3, NC axis, ø 50 mm, 11 kW, clamping length: 400 mm 8. Profiling unit, vertical right, 3 kW 9. Profiling unit, vertical right from above, 3 kW 10. Profile milling unit, horizontal from below, NC axis 3 kW * Double part package * Milling package with milling carriage * Automatic turning system * PC control NEXUS * CNC controlled length stop * Studio window facility * Aggregate for edge rounding from below with a crosscut saw * Rung support bar * Incl. suction pipe system * Incl. tool set Oertli * Further technical data and tool drawings on request.

Specifications

ManufacturerWeinig
ModelUnicontrol 10
ConditionUsed
Stock Number600052
