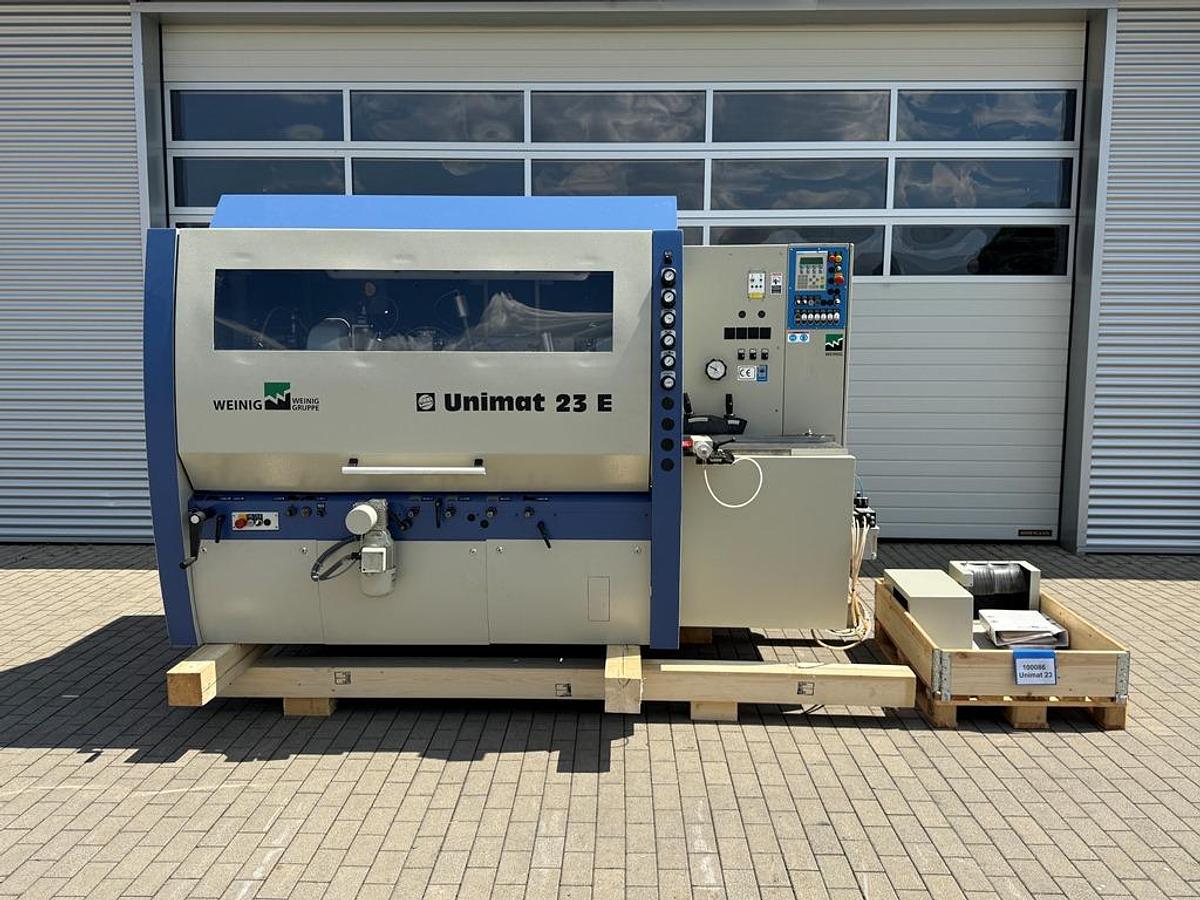

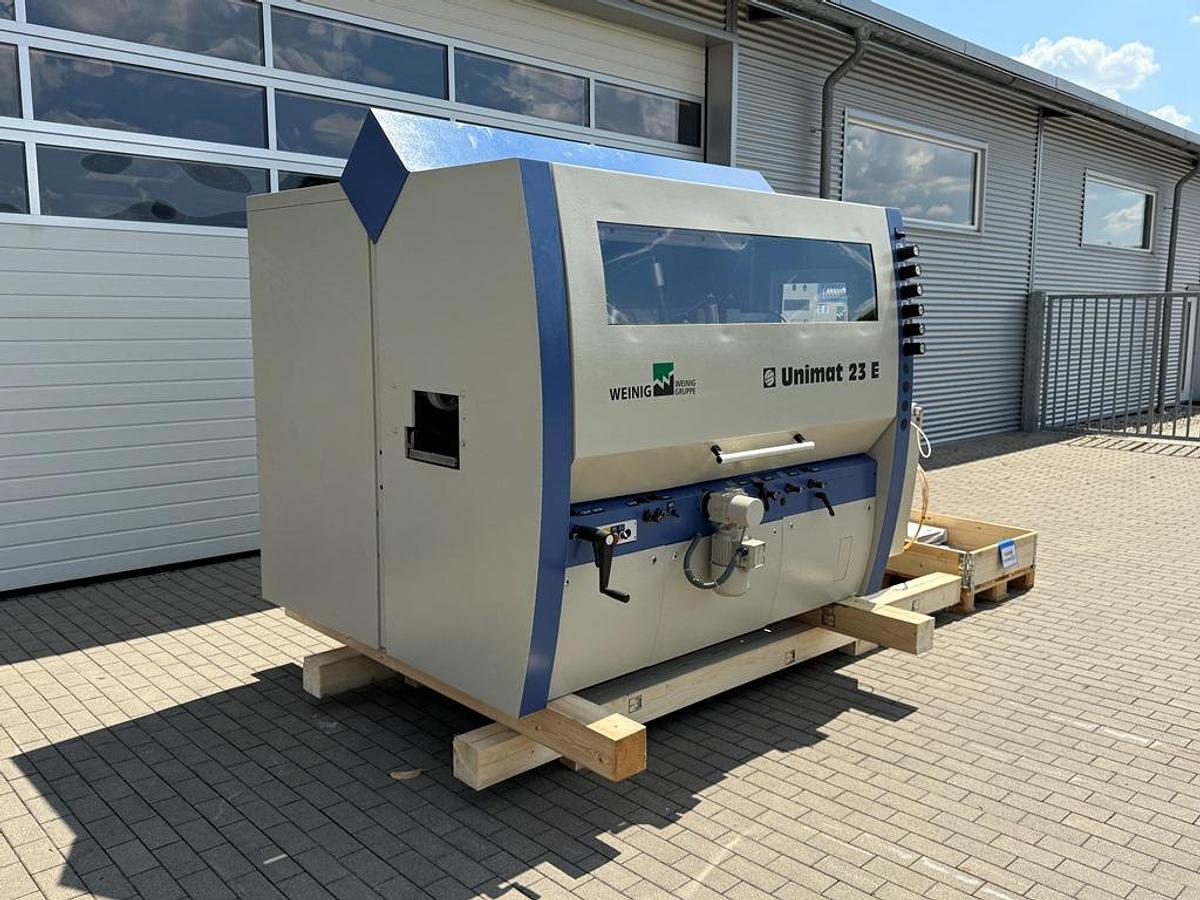

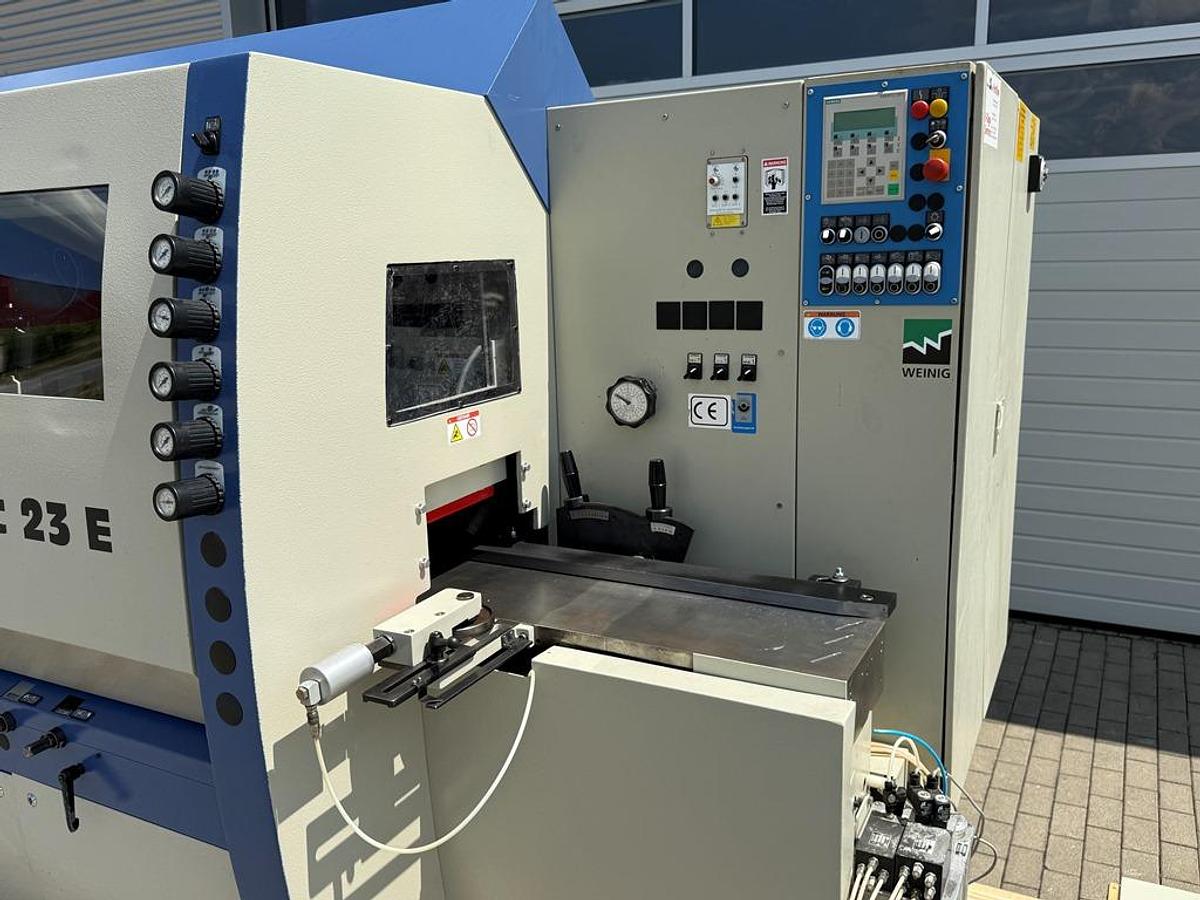

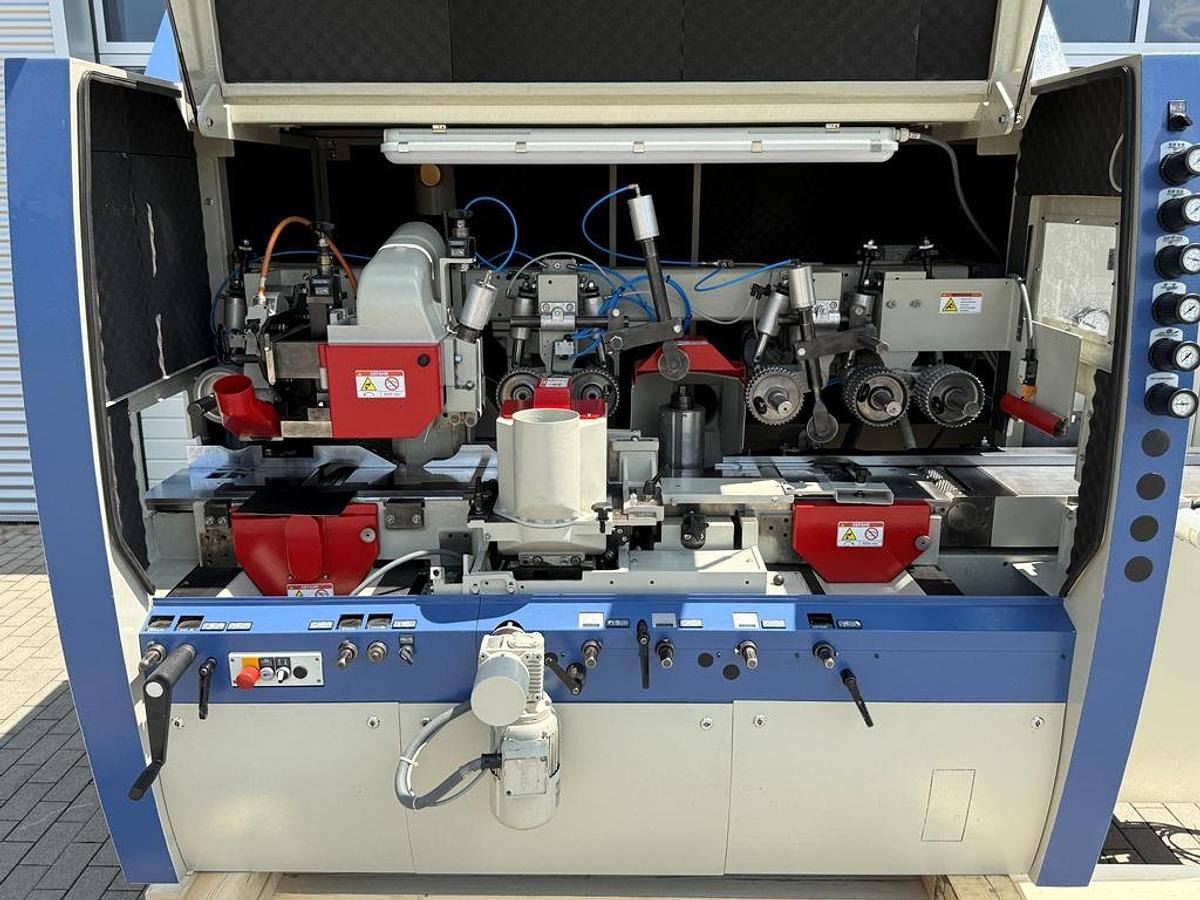

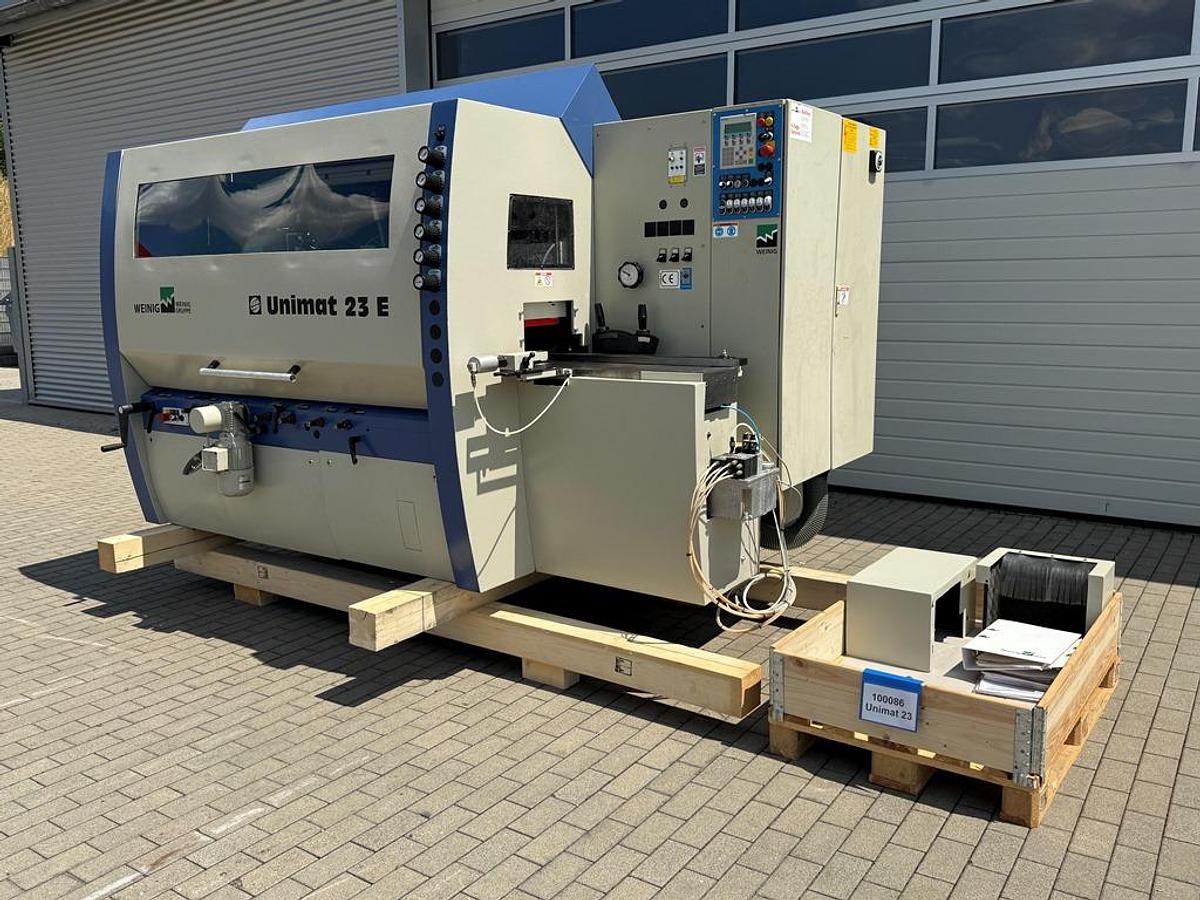

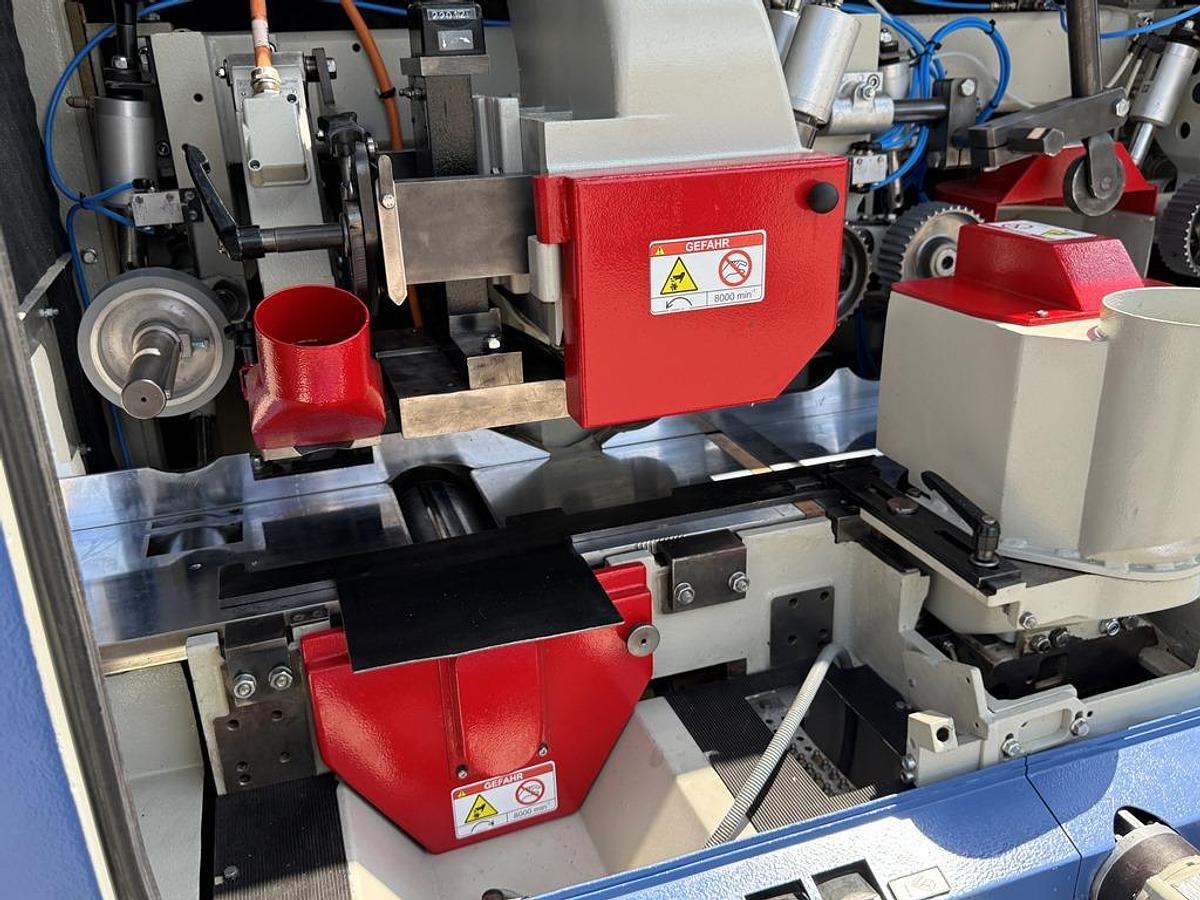

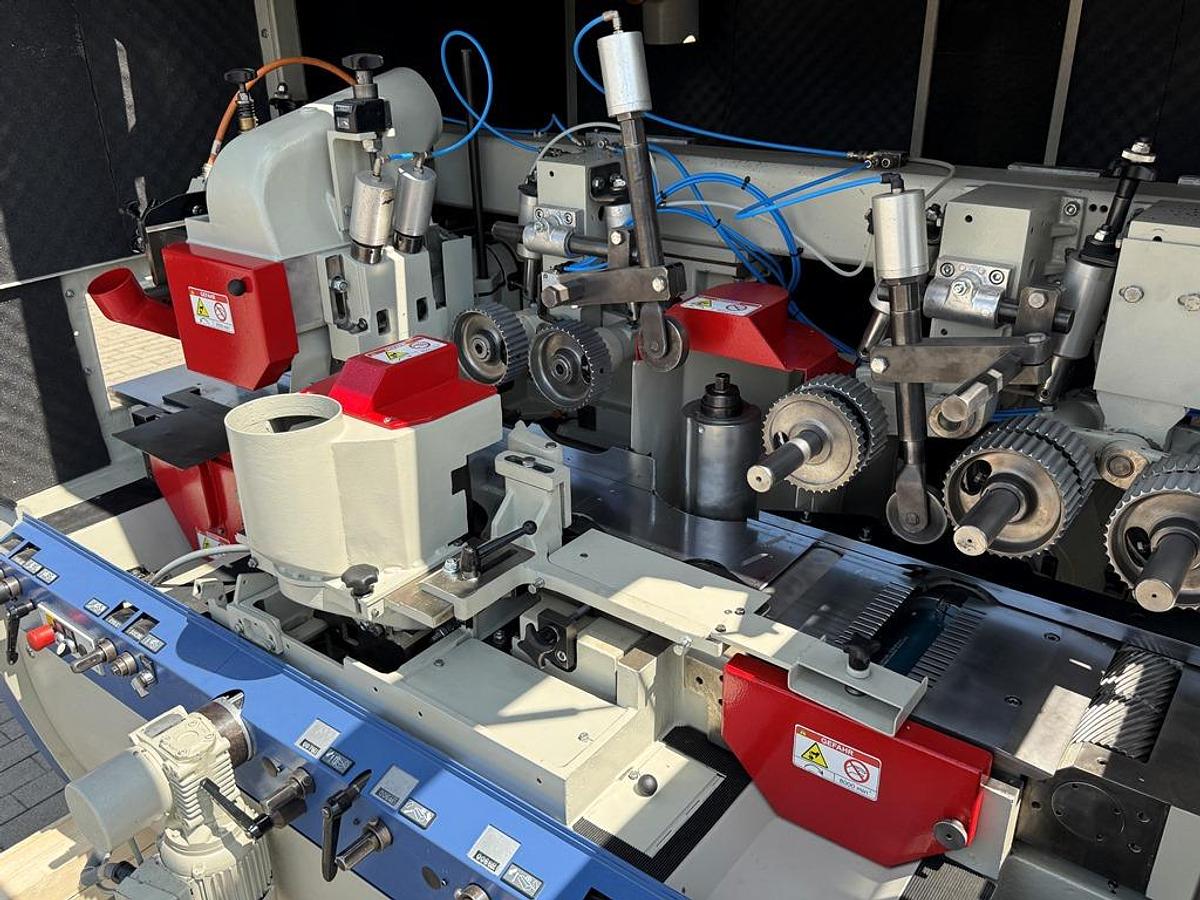

Four-side planer WEINIG type Unimat 23 E
No longer available
Four-side planer WEINIG type Unimat 23 E
Location:Tauberbischofsheim, Germany
Available quantity:1
Description
Weinig Unimat 23 E planer and moulder for four-sided planing and profiling of wood with ATS system and chamfering unit, including tools for large wood dimensions.
Specifications
| Manufacturer | Weinig |
| Model | Unimat 23 E |
| Condition | Used |
| Referenznummer | 100086 |
| spindles | 5 |
| working width | 260 mm |
| working height | 180 mm |
| Control | ATS system |
| Air cushion table | Yes |
| Table lubrication | Automatically |
| Driven table rollers | Yes |
| spindle 1 | Bottom / 11 kW / 40 mm / 8,000 rpm |
| spindle 2 | Right / 15 kW / 40 mm / 8,000 rpm |
| spindle 3 | Left / common motor with spindle 2 / 40 mm / 8,000 rpm |
| spindle 4 | Top / 11 kW / 40 mm / 8,000 rpm |
| spindle 5 | Bottom / 7.5 kW / 40 mm / 8,000 rpm |
| spindle 6 | Chamfering unit top left / 1 kW |
| feed | 4 kW / 5 – 24 m/min |
